In part one of this project, I studied the structure of a gas station canopy. It is a very light structure that is hidden from view inside the siding of the canopy. In part two, I experimented with the verb "weave". I did not want to weave the structural members but rather have them appear to be woven by adding many layers to the structure. In part three, the main idea was to not only have the structure appear woven, but the spaces between as well. The structure is all aligned by a grid system. After entering the site, one circulates through different spaces and levels that are all woven together by the main structural elements. The levels overlap each other with walkways allowing the viewers to experience the structure as they walk through. The shadows that are cast on the surfaces by the frosted glass and the roof structure reinforce the idea of weaving.
Perspective Facing Towards Street
Perspective Market Stalls
Perspective Overlooking Entertainment Area

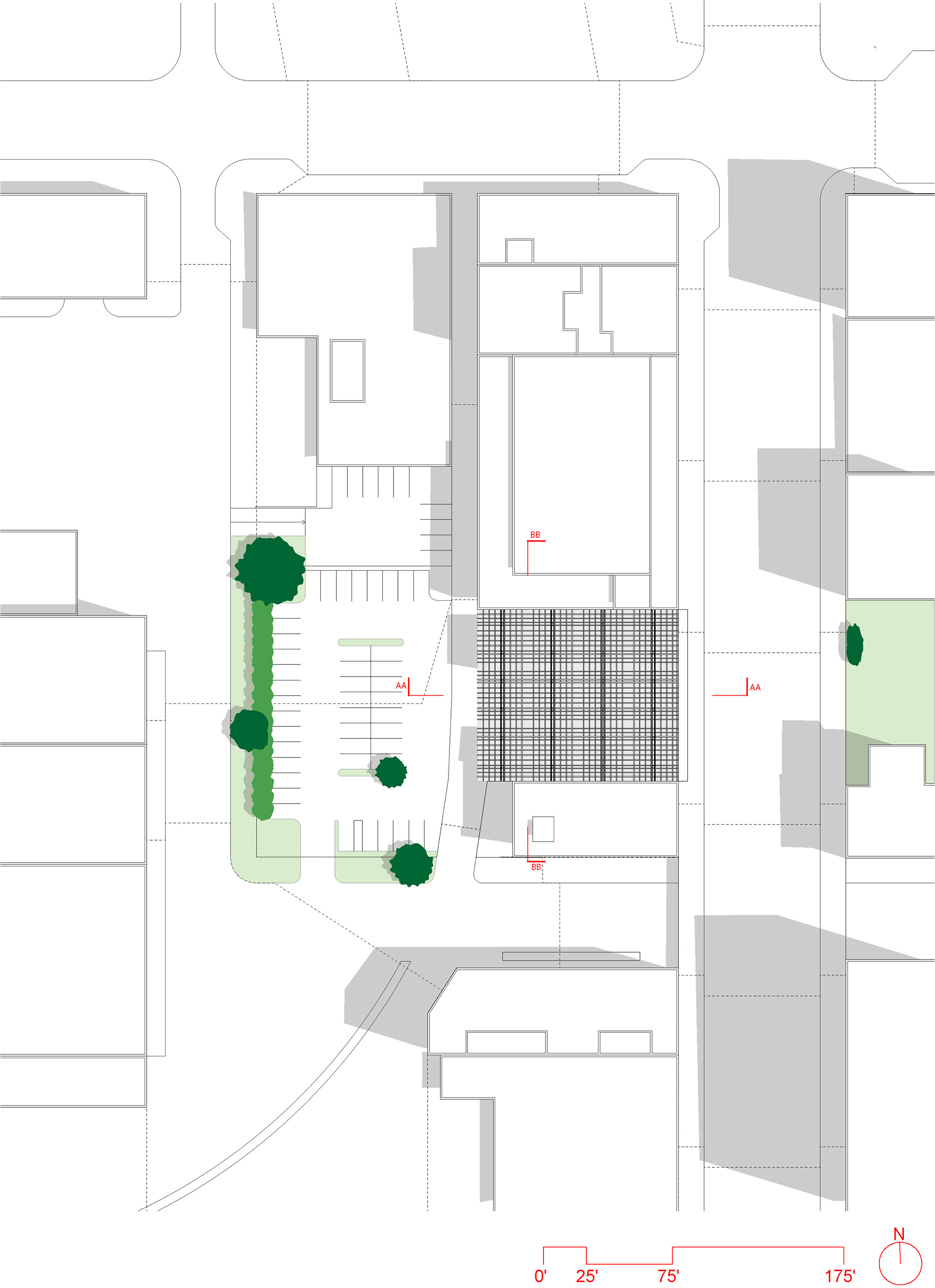

Site Plan

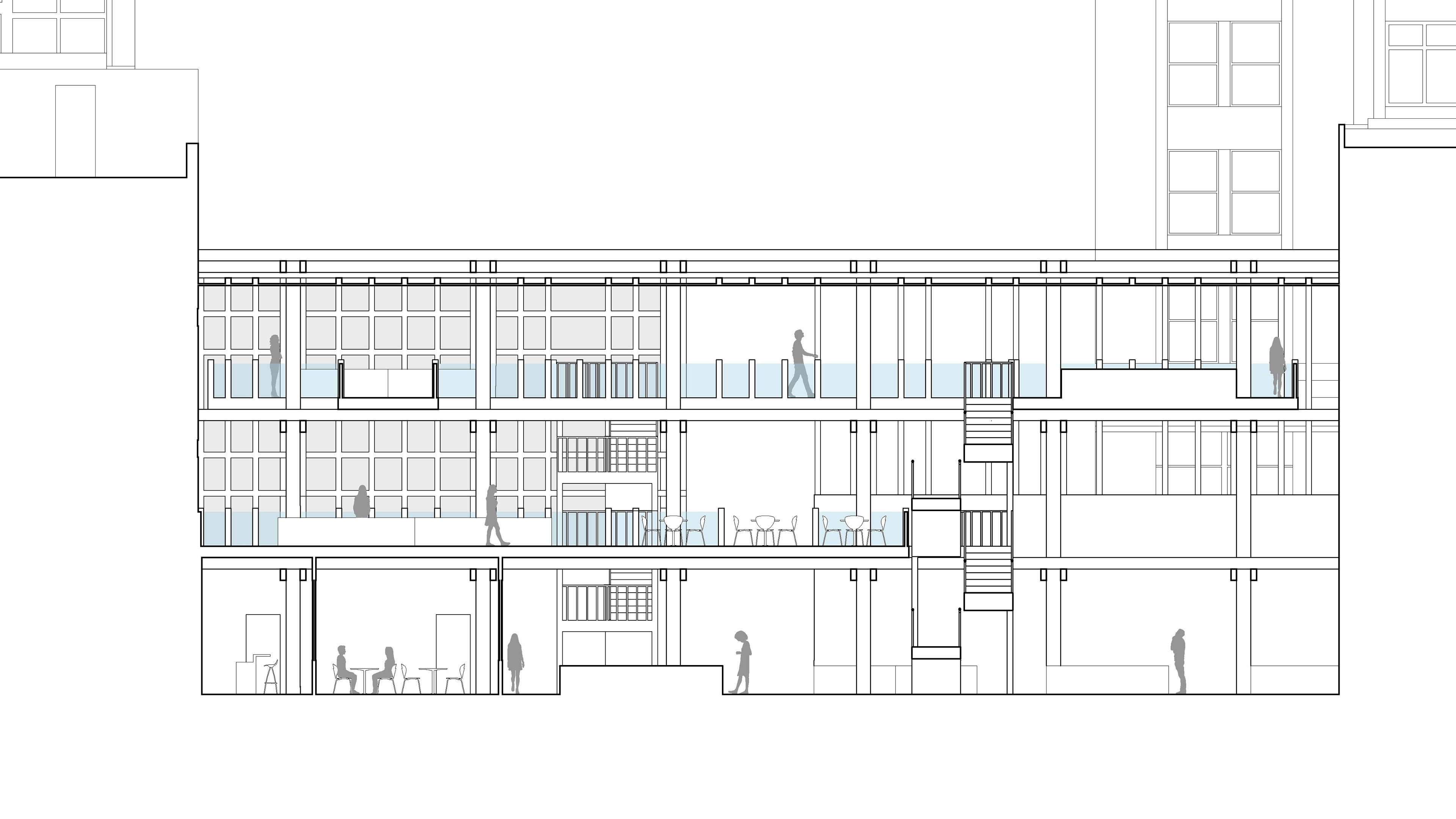

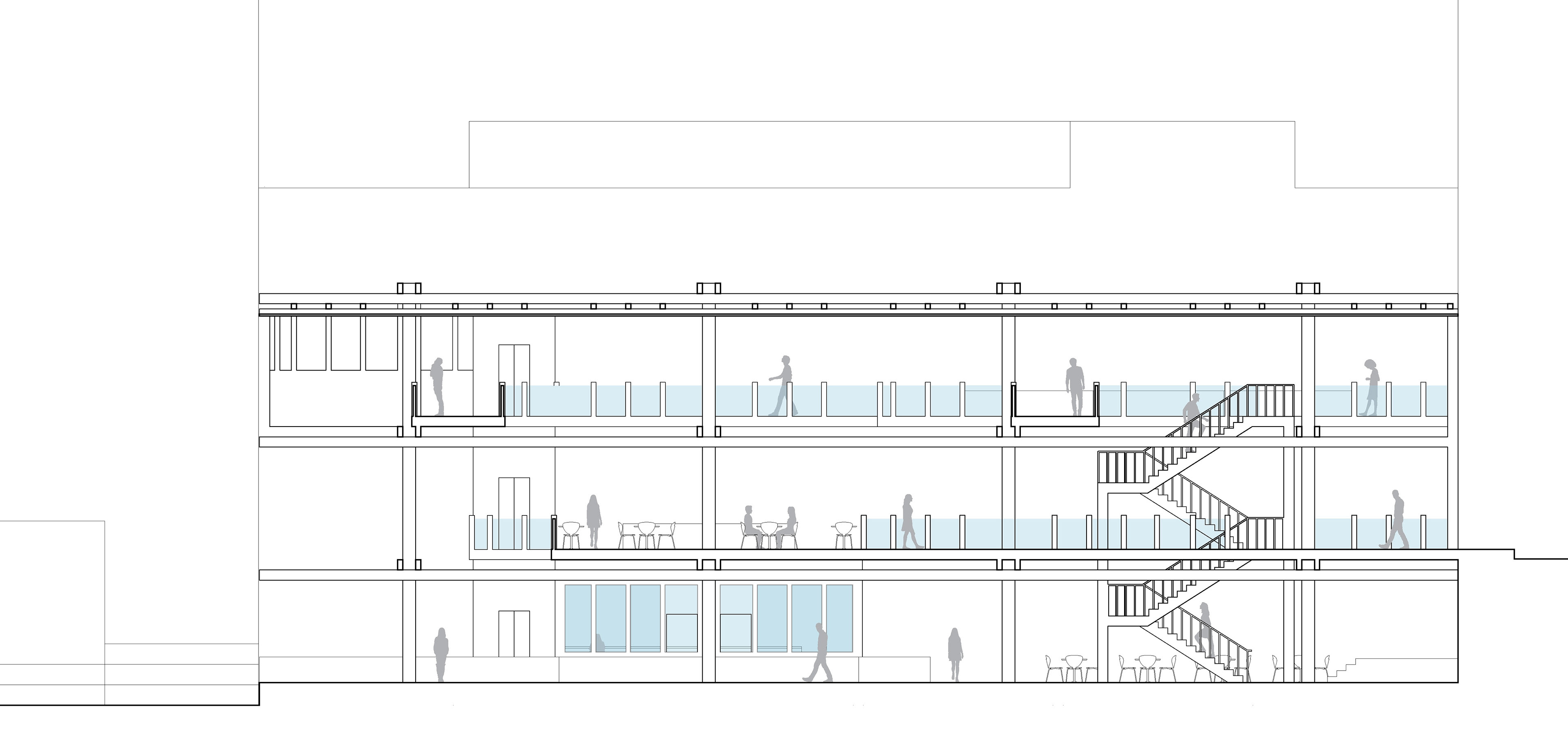

Section AA
Section BB

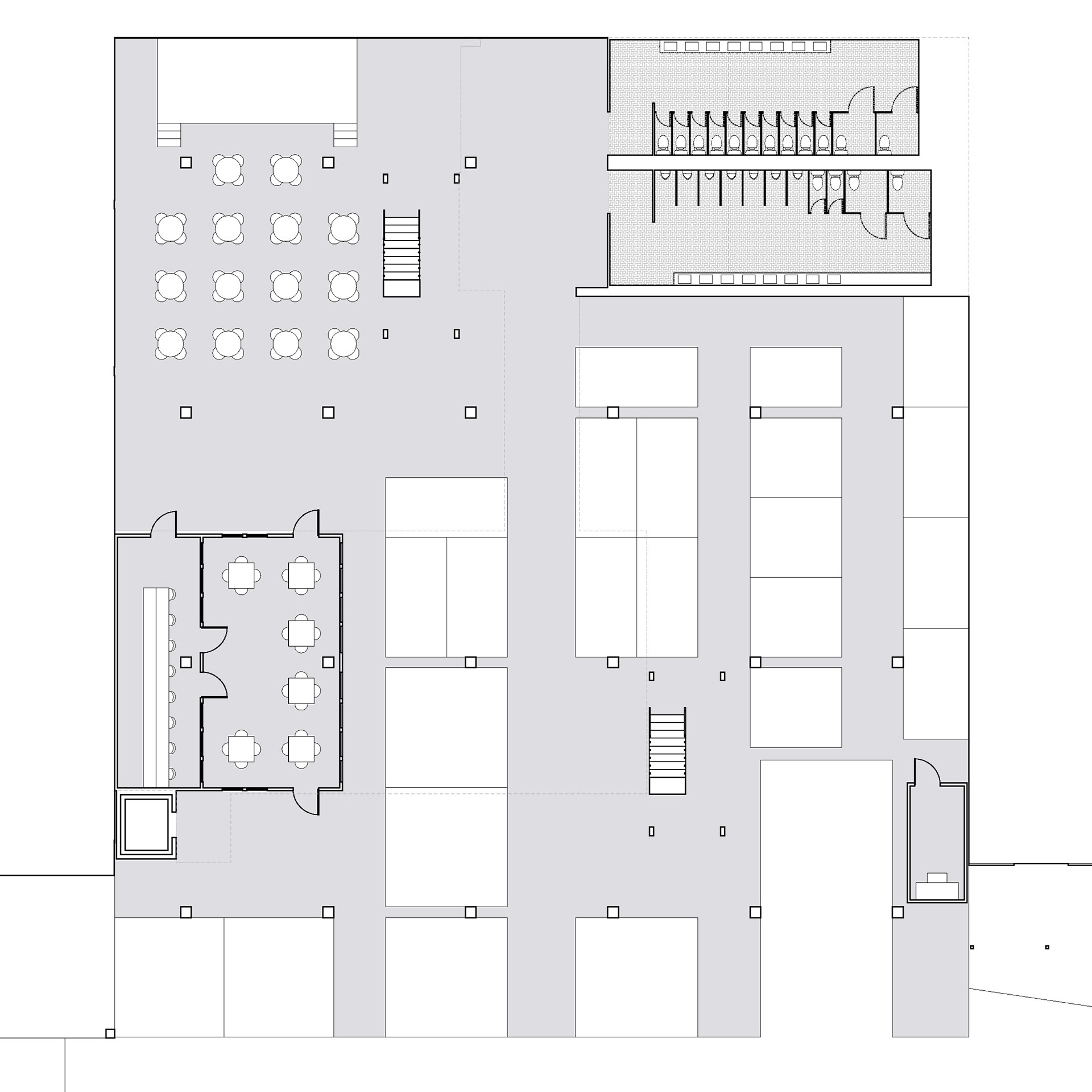

Market Level Plan

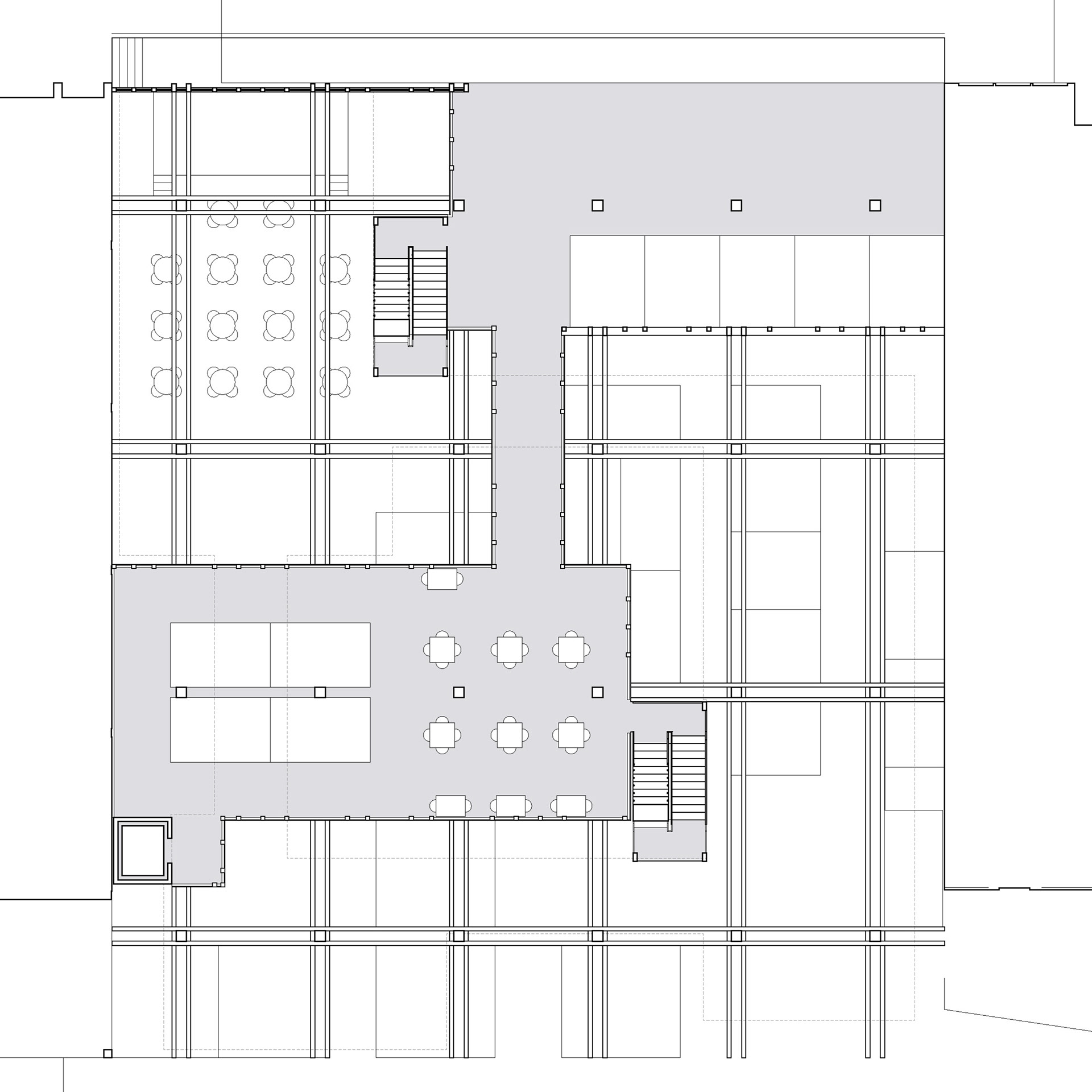

Grand Ave. Level Floor Plan

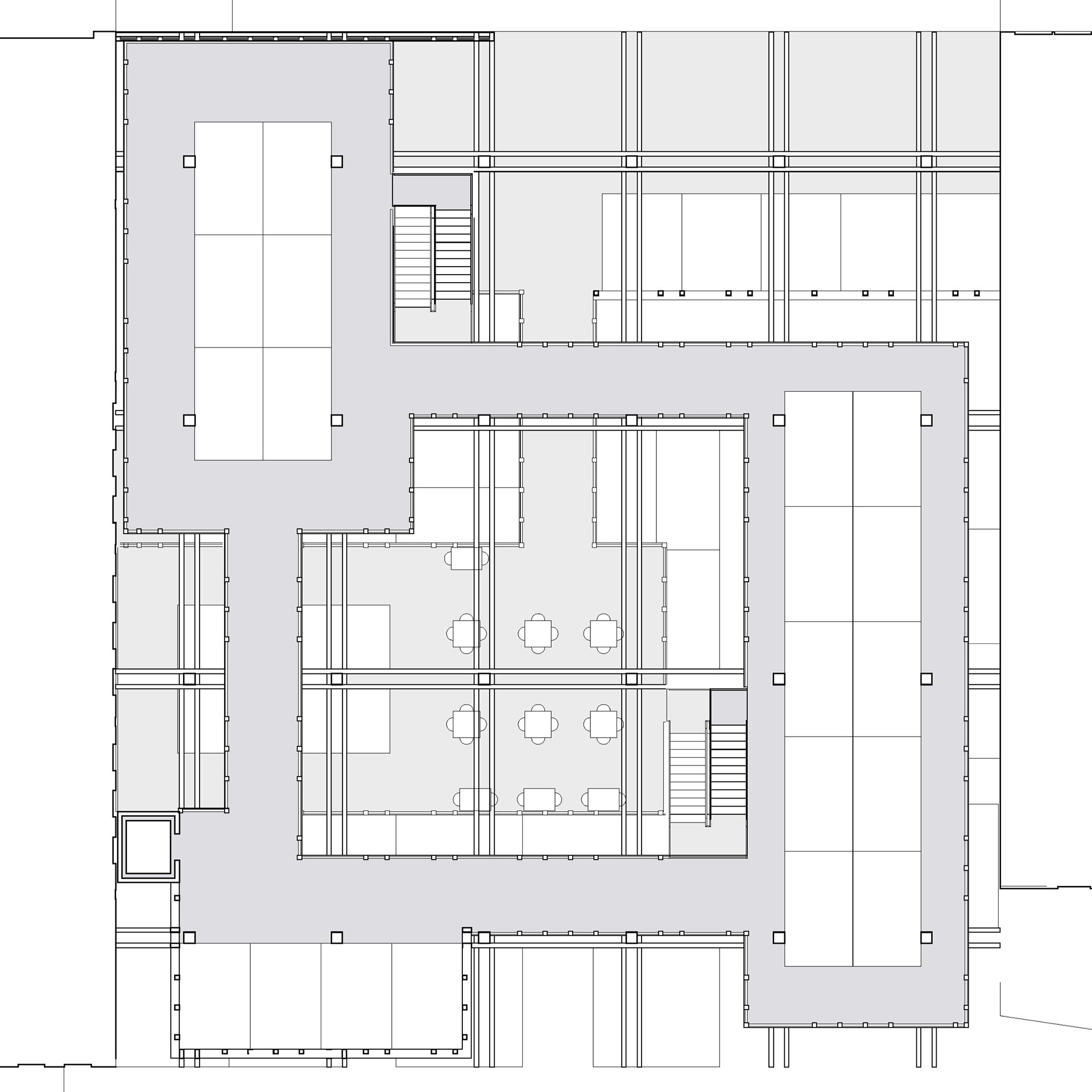

Third Floor Plan

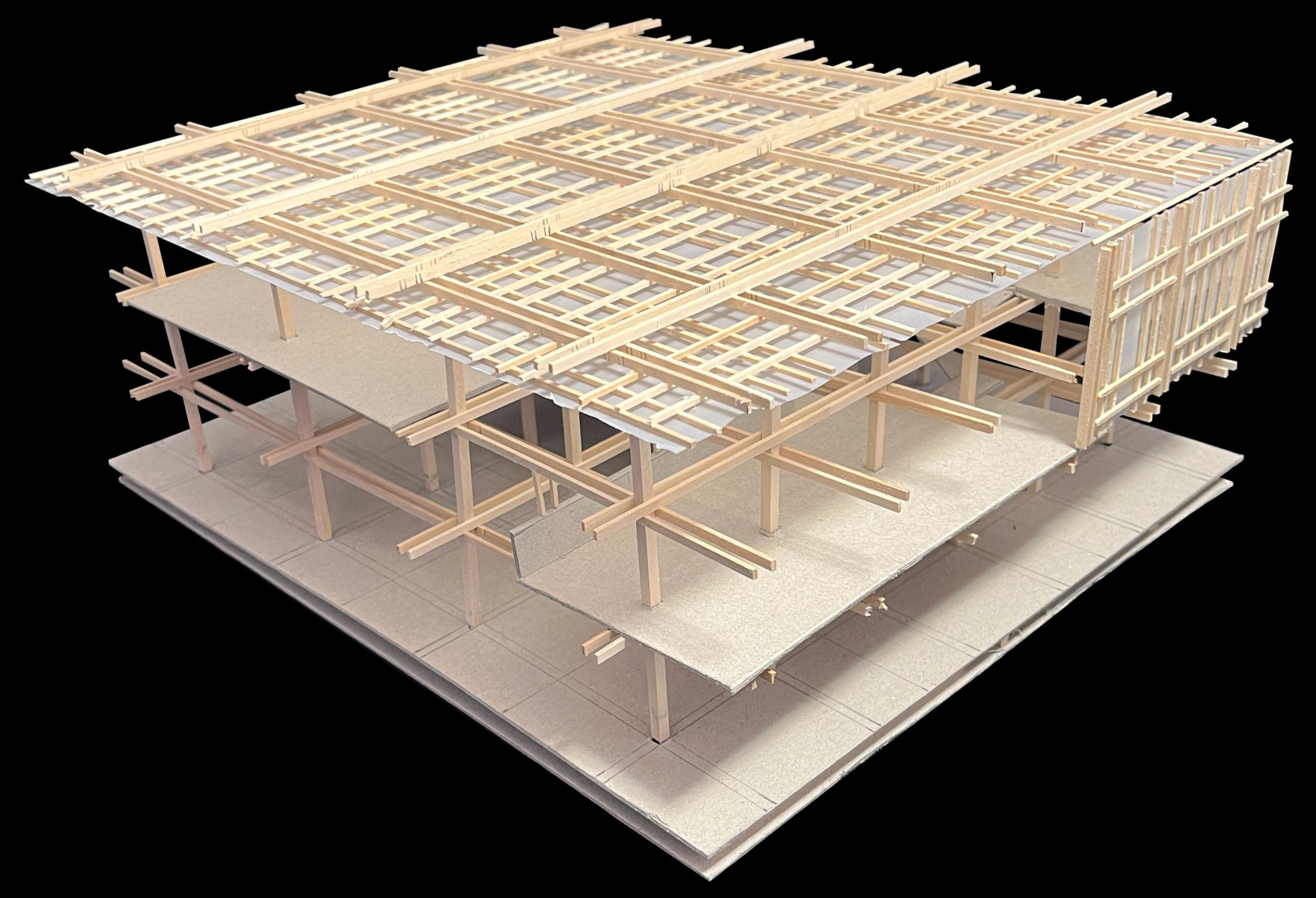

Market Model
Market Model

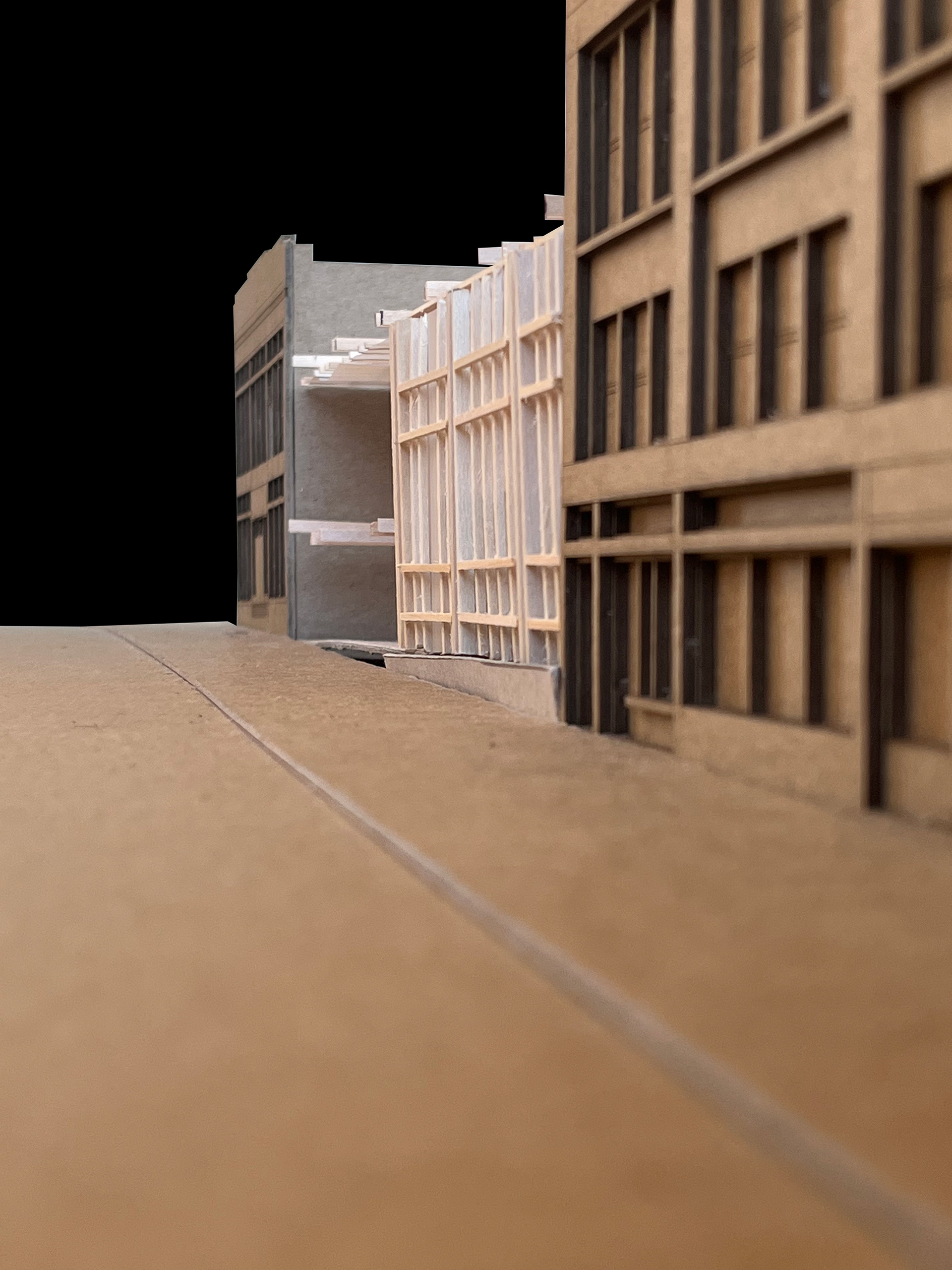

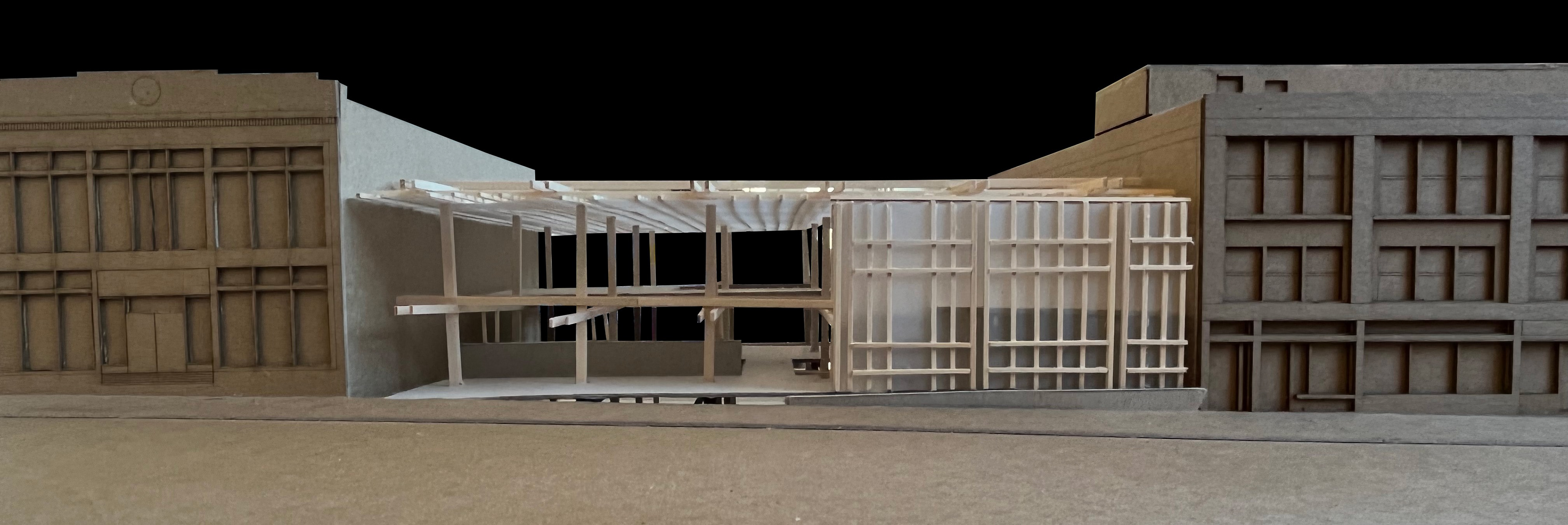

Market Model in Site Model
Market Model in Site Model

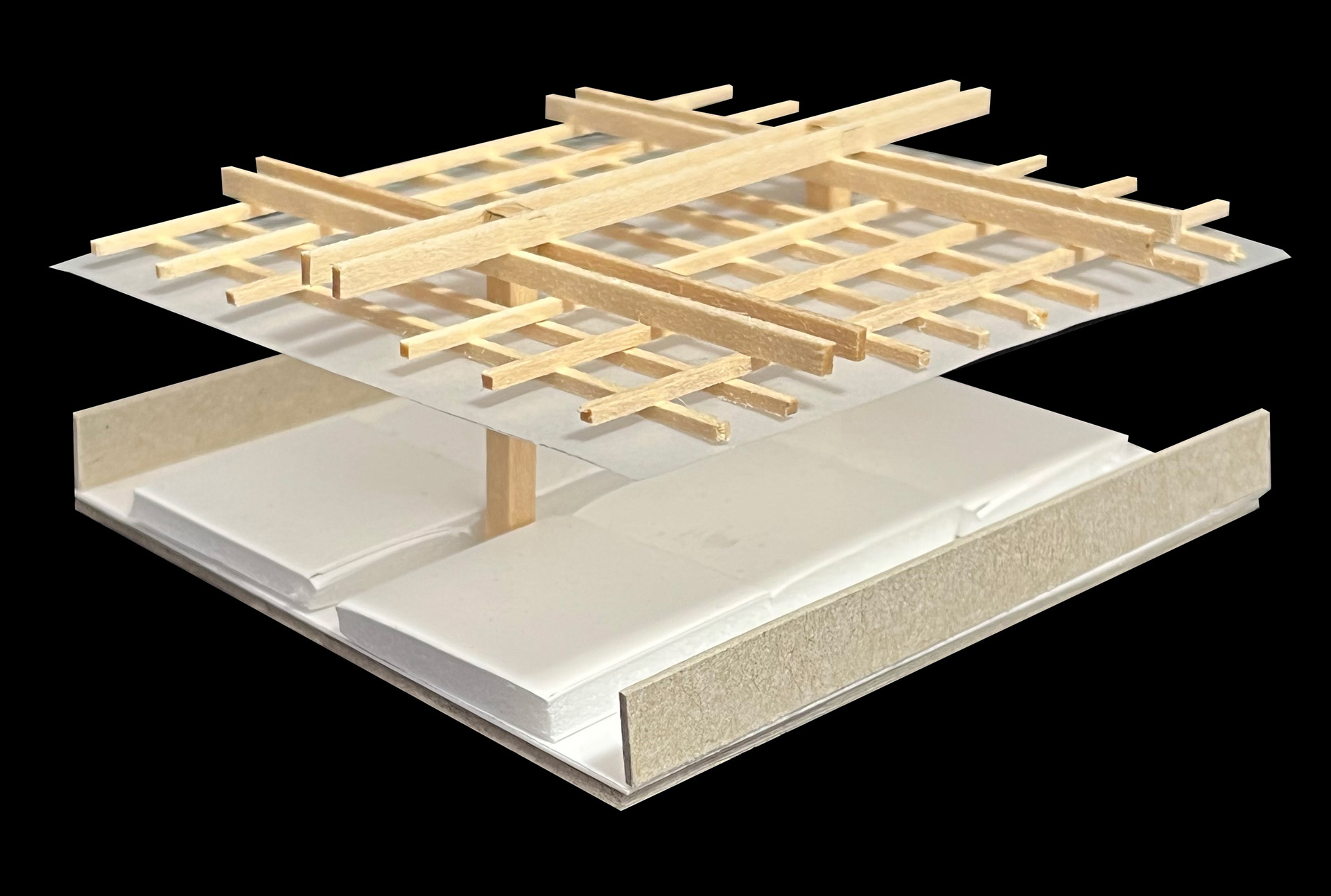

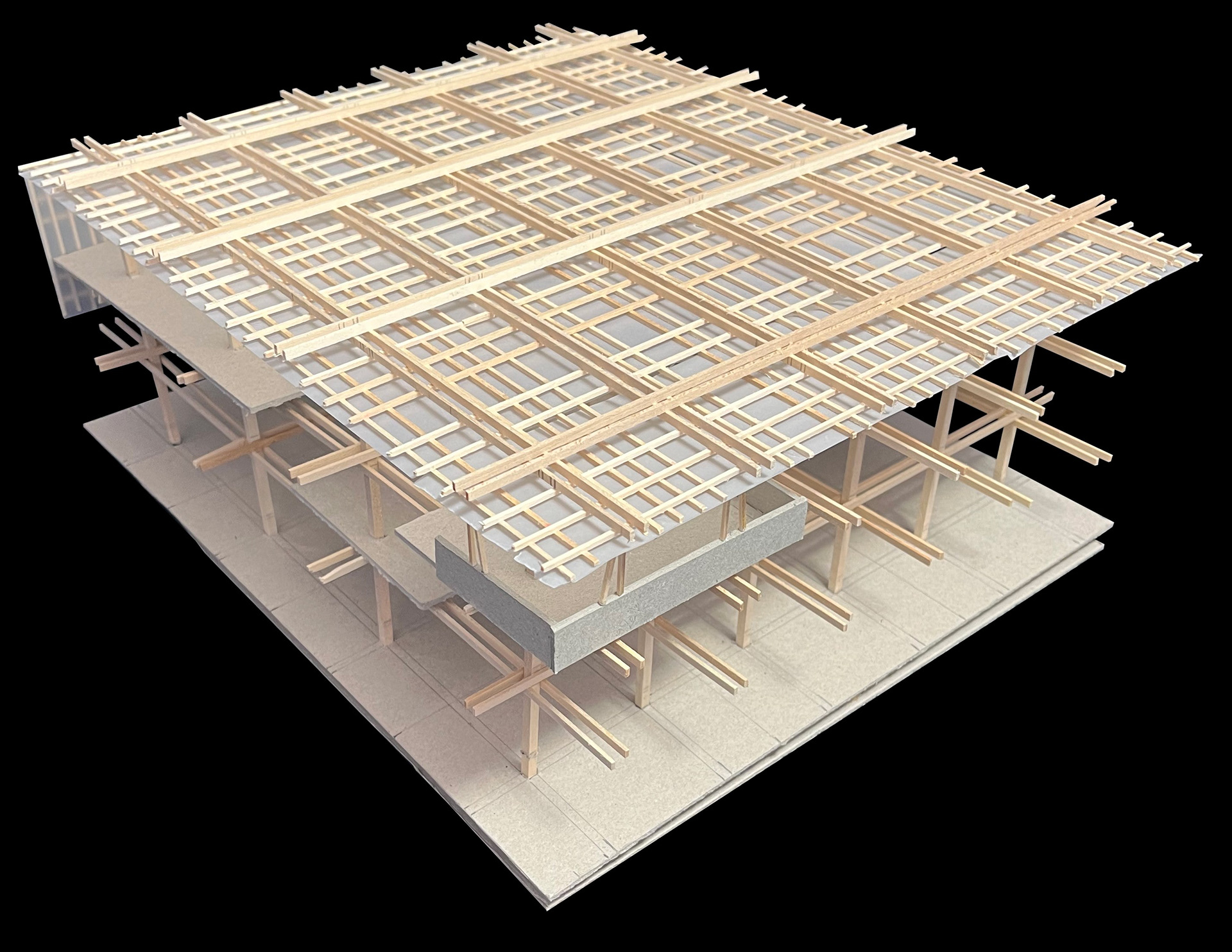

One Single Bay Study Model
